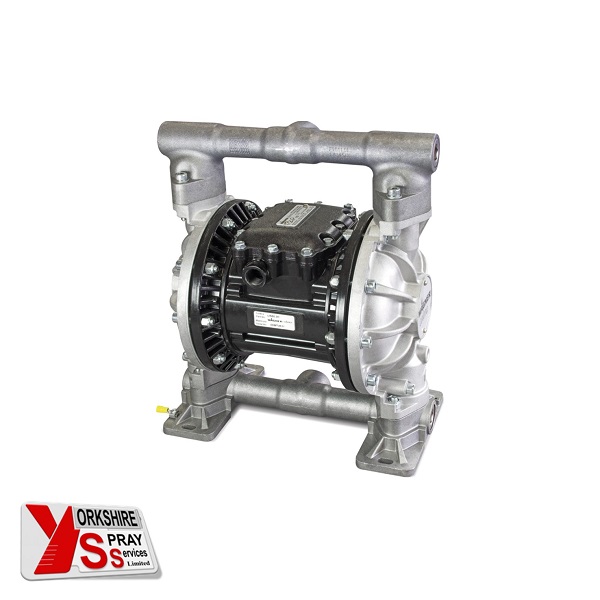

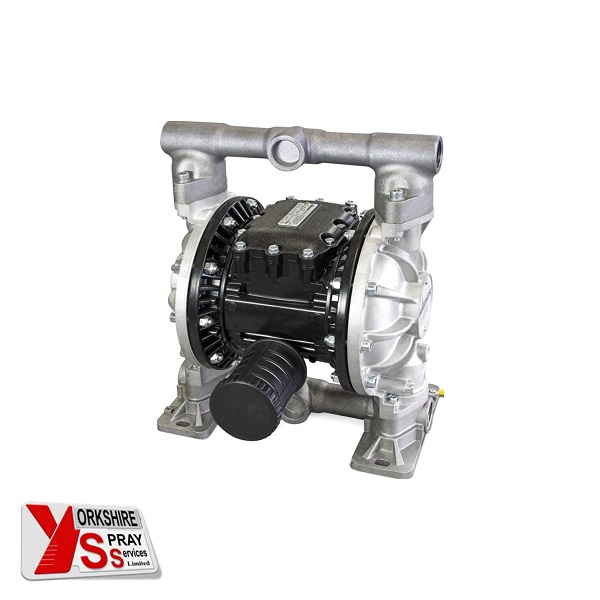

Wagner DDP Zip182

Product Description

The Wagner DDP Zip182 Pump, the first choice for supreme coating quality, reliability and power, the Wagner DDP Zip182 is Double diaphragm pump ideal for material transport, transfer and circulating systems up to 8bar and 182ltr p/min.

Features & Benefits

• Reliability – The special long-life diaphragm ensures a high degree of reliability and minimum downtime. High chemical compatibility tanks to PTFE O’Rings. The optimised design with less dead space enables rapid color change and cleaning, and a reduction in the amount of solvent required.
• Optimal Maintenance – No leakage of fluids: the pump is totally bolted and only 1 tool is needed to dismantle it.
• High Performance – The air motor ensure highest performance with reduced air consumption; requires no additional lubrication and suffer from no freezing problems.
• Versatility – Different pump sizes and a comprehensive product palette guarantee a wide range of possible application.
• Minimal Pressure – Anti-stall pilot valve, pre assembled and easy to replace. It operates at minimal pressure tanks to low internal friction.
• No material leakage –  the pump is fully threaded with Long-lasting diaphragms.

Zip Pump Technology

In the Wagner AirSpray process, the paint is atomised entirely by air. The task of the pump is to feed the gun with a constant flow of materials. Zip pumps are perfect for Airspray applications. Whether you are using thick high viscosity material, shear sensitive or thixotropic, heat critical paints or just ordinary coatings, Zip finishing equipment meets all the expectations of a professional painter. Two coupled diaphragms (2) are moving from the left to the right and back by help of pressurised air (3). The steering valve (4) guides the air to the side where the diaphragm is moved to contract the fluid chamber (1). Material is being transported by contraction and expansion of the fluid chamber volume and the inlet- and outlet valves (5 & 6). 1 | Pumped Material & Pump Chamber 2 | Long Life Diaphragm 3 | Pressurised Air 4 | Steering Valve 5 | Material Inlet Valve 6 | Material Outlet Valve

Product Details

Technical Data

Pump Ratio 1:1 Operating Pressure 8 bar, 116 psi Material Temperature 4 – 90 °C Air Inlet Pressure 1 – 8 bar Max. Operating Pressure 8 bar Volumetric Flow with Free Flow 182 l/min Volumetric Flow per Double Stroke 300 cm³/DS Max. Particle Size 3.5 mm Sound Power at Max. Flow Rate & Feed Pressure of 8 bar 85 dB(A) Sound Level at 50 Cycles/min & Feed Pressure of 5 bar 78 dB(A) Max. Suction Lift 6.3 m Pump Body Material Aluminum Valve Seat Material Stainless Steel Ball Material Stainless Steel Inlet /Outlet 1″ inch
