Wagner EvoMotion 20:30S Finishing

Product Description

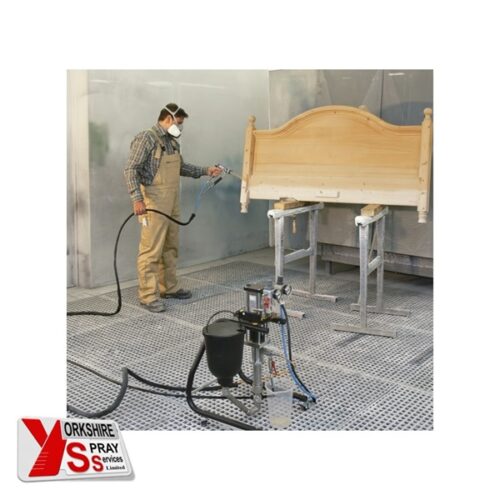

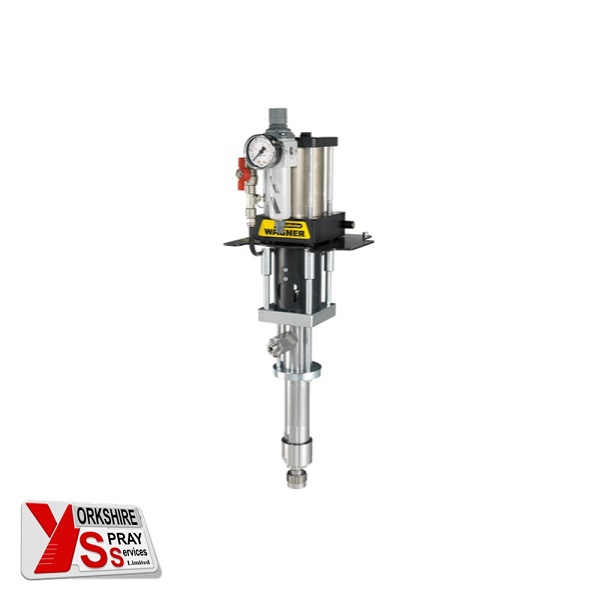

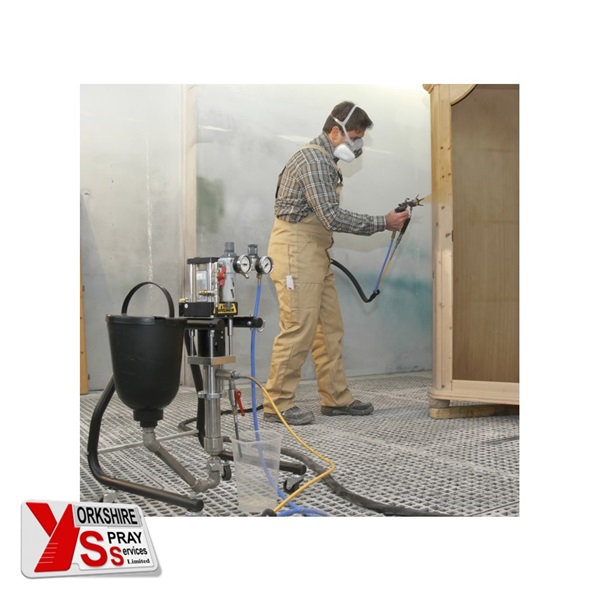

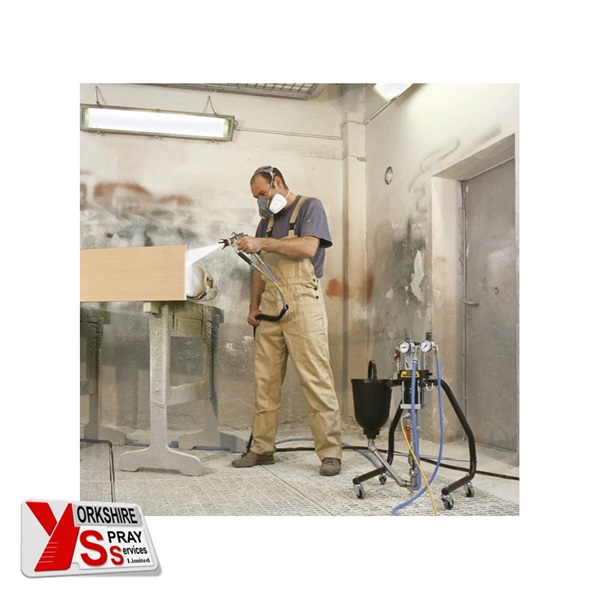

The Wagner EvoMotion 20:30S Finishing Pump – High pressure piston pump, stainless steel, for AirCoat applications up to 160 bar and 1.8 L/min. Ideal for professional lacquer stations in single-item production and for workshops, using small quantities of paint or frequent colour changes. Also ideal product family for the feeding of a wide variety of solvent-based and water-based materials. The paint stages are of stainless steel and for this reason are extremely robust, durable, reli­able and low-maintenance. The power full air motor enables constant working conditions for best coating results.

Wagner EvoMotion pumps provide reliable paint supply for a constant, pulsation-free material flow. The low-wearing, corrosion-resistant cylinders and pistons, the high quality packing material and the stainless-steel valve seats guarantee a long service life and reduced servicing costs.

Features & Benefits

• Efficient Air Motors – They have great power reserves by means of which they convert the energy perfectly into pump output.
• Pressure Regulator with Overpressure and Relief Valve – This accessory provides maximum safety for the user.
• Maintenance Friendly Colour Levels – According to the type and size, Wagner EvoMotion pumps have ideally adapted, reliable, maintenance-friendly colour levels.
• Spray Packs, Suction Systems & Accessories – EvoMotion pumps have a wide variety of accessories.

Technical Data

Pump Ratio	20:1	Wagner’s EvoMotion High & Low Pressure Piston Pumps, offer a variety of capacity classes for the versatile requirements for many industrial coatings. Warranty provided is such that the device or individual parts of the device are either replaced or repaired, detailed in Wagner’s Warranty decleration. See manual below for details.
Operating Pressure	160bar / 2321psi
Volumetric Flow per Double Stroke	30cm³/DS, 1.83 in³/DH
Volumetric Flow per 60 DH	1.8l/min
Max. Stroke Rate	60DS/min
Material Inlet	A – M 36 × 2
Material Outlet	A – 1/4″NPS
Air Inlet Pressure	2.5 – 8.0bar / 36 – 116psi
Sound Level at 6 bar Air Pressure	74dB(A)
Material Temperature	5 – 80 °C / 41 – 176 °F
Ambient Temperature	5 – 60 °C / 41 – 140 °F
Material Ph	3.5 – 9 pH
Max. Material Pressure at Pump Inlet	20bar / 290psi
Allowable Inclination	±10°
Weight	11kg

Box Contents		Further Information

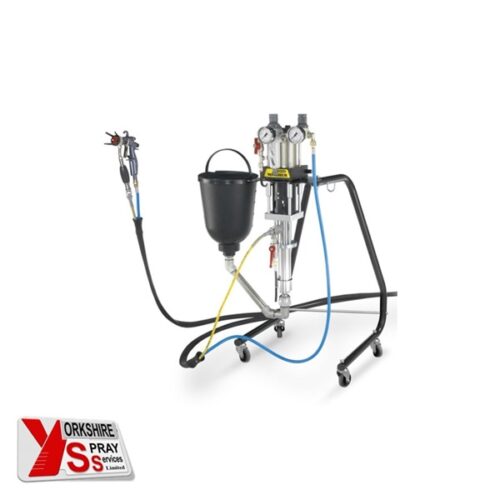

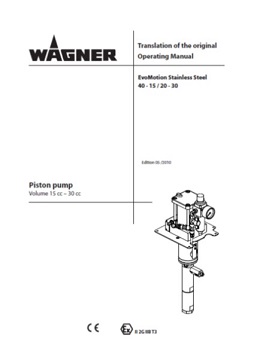

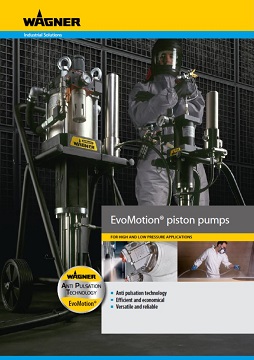

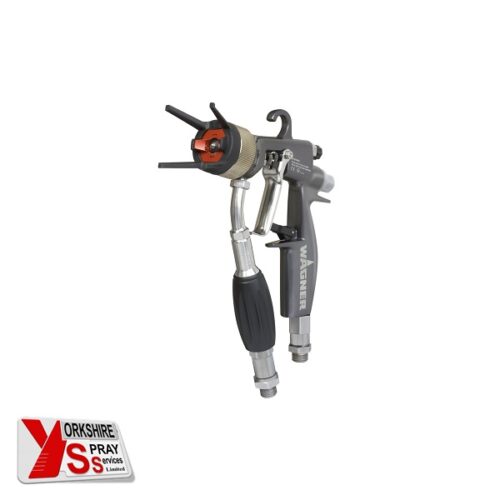

Aircoat Spray Pack EvoMotion 20:30s PE/T 4 Wheel Trolley AirCoat Air Regulator Hopper 5ltr AC-Hose-DN4-1/4″ 7,5m GM4700AC 25MPa NPSM1/4″ AirCap LV plus (Red) Nozzle ACF3000 11/40 Wagner Part No. 2329452/AC/SP		Brochure Open	Spray Packs Open	Manual Download
