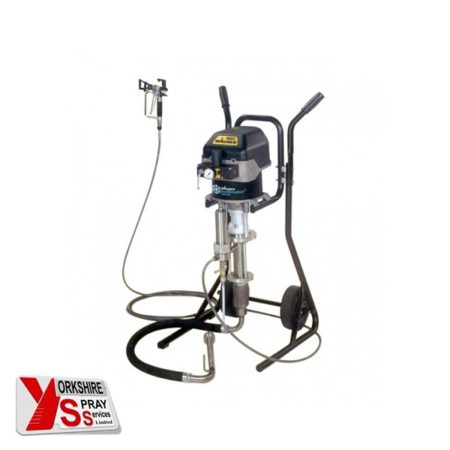

Yorkshire Spray Services Ltd - Wagner Leopard 35_150 Airless Spray Pack

Yorkshire Spray Services Ltd - Wagner Leopard 35_150 PE_TG

The Wagner Leopard 35:150 SP-AL Finishing – High-pressure piston pump, stainless steel, for Airless application. Ideal for industrial coating in the wood and metals industries and the use of multiple guns.

£POA

Please call or email for pricing – Discounts may be offered for multiple purchases, or any agreed part exchange.

Description Additional information Reviews (0)

Product Description

Yorkshire Spray Services Ltd - Wagner SP VC Puma Slide Image 1

The Wagner Leopard 35:150 SP-AL Finishing – High-pressure piston pump, stainless steel, for Airless and application. Ideal, for example, for industrial coating in the wood and metals industries and the use of multiple guns.

Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used. The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions and optimal performance. Outstanding durability, very high reliability and unique features make the Wagner Leopard 35:150 SP-AL Finishing IceBreaker pump the optimal choice for almost any high-pressure application. Equiped with Large ball valve with hard metal seats ensures strong suction power & extremely long working life.

Features & Benefits

1 \| Powerful & Reliable – The unique internal design of the motor & its special discharge valves drastically reduce ice formation & prevent accumulation to ensure superior performance & exceptional reliability		5 \| Under Full Pressure – The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions & optimal performance
2 \| Safe Operation –The pressure regulator is integrated with a safety air valve to ensure when it is closed that no pressure is left in the air motor		6 \| Performance & Durability – Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used
3 \| Service Friendly – The release agent cup is easily accessible. The quick-release coupling between the piston rod and air motor make it possible to quickly and easily disconnect the fluid section		7 \| Acid Catalyst Option – All components that come into contact with the acid catalyst can be supplied in 316ss. This option can be used with the Twin Control & 2K Smart mix systems
4 \| Filtration & Recirculation – The fluid section has the option to be fitted with a high pressure fluid filter or release combo for a quick pressure release, fill or flush function. The Wagner Leopard 35:150 is supplied with the HP-Filter DN12 PN530		8 \| Easy & long Lasting – Large ball valve with hard metal seats ensures strong suction power & extremely long working life. Easily opened for cleaning without disassembling the fluid section. The suction hose moves freely on a swivel joint

High Pressure Material Filter

High pressure filters for high flow rates. To be mounted directly at the pump outlet. Equipped with big and easy to clean filter insert Type L. Completely made from stainless steel. The ball valve is used to depressurise the pump in order to prime or flush the pump directly w/o dismantling the HP-hose. The ball valve can also be used to install a full circulation system, when e.g. material must be heated or circulated for other reasons.

Advantages

Easy to Clean – Large product filter, easy to flush and clean, for optimum service.
Up to 530 bar – For product pressure up to 530 bar.
Easy to Remove – Stable ball cock in easily accessible position.
Complete Solutions – Standardised connection geometry for product return systems: from simple pressure relief to complex material circulation.
Suitable for – timber, synthetic materials or metal coatings, thin paints or high-viscous corrosion protection.

Yorkshire Spray Services Ltd - Wagner HP-Filter with Relief Valve DN12

Technical Data

Pump Ratio

35:1

Yorkshire Spray Services Ltd - Wagner IceBreaker - Wagner Leopard 35:150 Airless Spray Pack

Airless & AirCoat Applications. Wagner’s IceBreaker Pumps, optimal choice for many high-pressure application. Ideal for professional individual lacquer stations or as a hardener pump.

Warranty provided is such that the device or individual parts of the device are either replaced or repaired, detailed in Wagner’s Warranty decleration. See manual below for details.

Yorkshire Spray Services Ltd - Wagner Industrial Warranty

Yorkshire Spray Services Ltd - Wagner Group Authorised Partner

Operating Pressure

250bar / 3249psi

Volumetric Flow per Double Stroke

150cm³/DS, 9.15 in³/DH

Volumetric Flow per 60 DH

9l/min

Max. Stroke Rate

60DS/min

Material Inlet

A – M 36 × 2

Material Outlet

A – M 24 x 1.5 1/4″NPS

Air Inlet Pressure

2.5 – 8.0bar / 36 – 116psi

Sound Level at 6 bar Air Pressure

74dB(A)

Material Temperature

5 – 80 °C / 41 – 176 °F

Ambient Temperature

5 – 60 °C / 41 – 140 °F

Material Ph

3.5 – 9 pH

Max. Material Pressure at Pump Inlet

20bar / 290psi

Allowable Inclination

±10°

Weight

36kg

Box Contents

Further Information

Airless SprayPack

Piston Pump Leopard 35:150 PE/TG
Trolley 6″ Assy.
Suction Hose DN25-SSt Assy.
HP-Filter DN12-PN530-SSt IceBreaker
Gun AG14 G-Thread 78″ NPS 1/4″
Fitting-RF-FM-G3/8-1/4NPSM-530bar-SSt
HP-Hose-DN4-PN270-¼”NPS-15,0m-PA
Standard Tip 515

Brochure

Yorkshire Spray Services Ltd - Wagner Finishing SprayPack Brochure

Open

Manual

Yorkshire Spray Services Ltd - Wagner Leopard

Download

Wagner Leopard 35:150,35150,35-150

Additional information

Spray Pack Variants	Airless Spray Pack, Pump & Trolley Spray Pack, Basic & Filter Spray Pack, Basic Spray Pack
