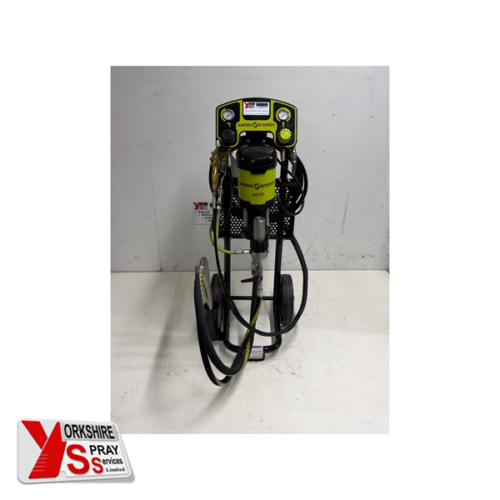

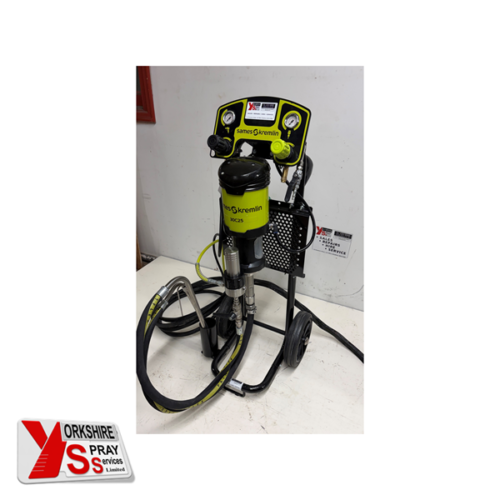

Kremlin EOS 30C25 Airmix

Product Description

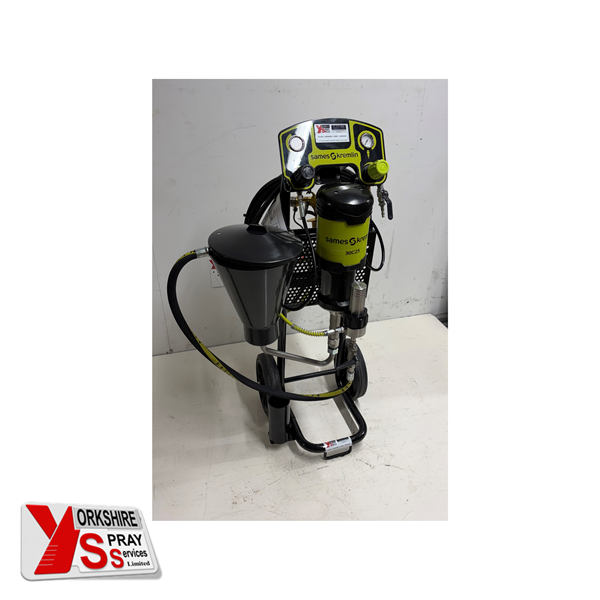

The Kremlin EOS 30C25 Airmix Reconditioned, ideal for painting small quantities of medium viscosity products, water or solvent based. The pump is equipped with differential air motor which keeps paint pump from frosting over and capable of priming at very low air pressures (0.6 bar). The Kremlin EOS 30C25 has large foot valve to handle high viscosity materials (up to 5,000 cPs). The pump has been designed to eliminate dead zones and facilitate pump priming & flushing, with Up to 180 bar of fluid pressure to compensate pressure drops. Available with Flexible Suction Hose or 5ltr Hopper Assy.

Features & Benefits

Performance

Productivity

Recondition Details

This reconditioned Kremlin EOS 30C25 Airmix Pump has been fully stripped down, cleaned and serviced, with new parts replaced where necessary. New parts as follows;- Inlet & Outlet Seal Full Service Kit Piston Rod Suction Hose

Technical Data

Pump Ratio 30:1 Operating Pressure 180bar / 2610psi Fluid Output at 30 Cycles 0.75l/min Fluid Output at 30 Cycles 0.5l/min Free Flow Rate 1.5l/min Material Inlet F 1/2″ BSP M26 X 125 Material Outlet F3/8″ NPS M1/2″ JIC Air Pressure 2 – 5bar Sound Level at 6 bar Air Pressure 74.9 dB(A) Material Temperature 60°C Max. Material Pressure at Pump Inlet 195bar Weight 9.6

Box Contents		Further Information

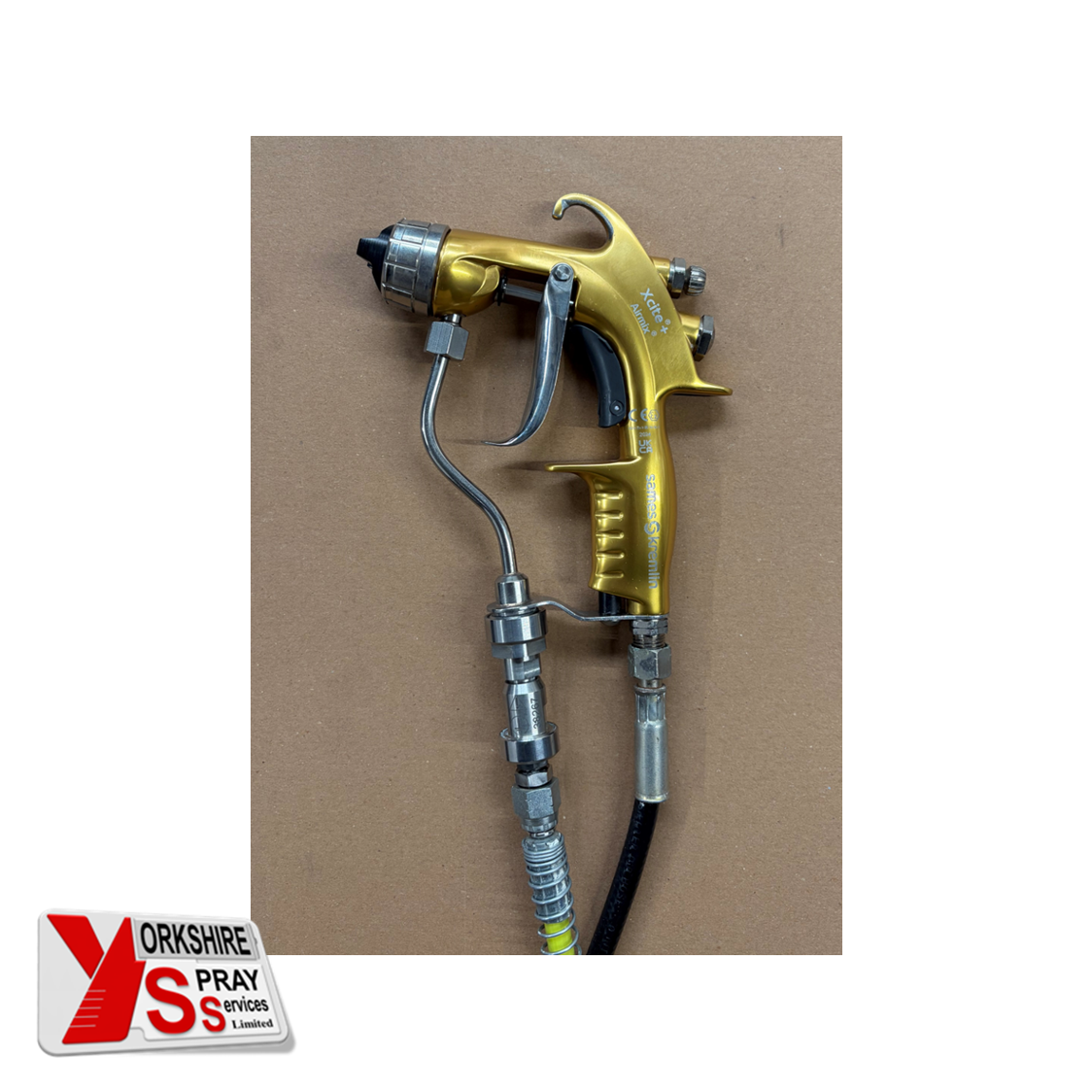

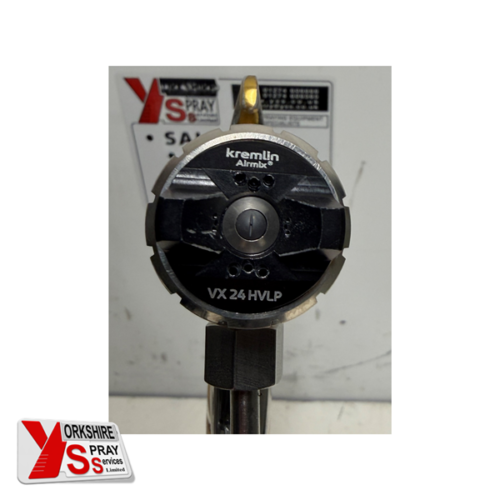

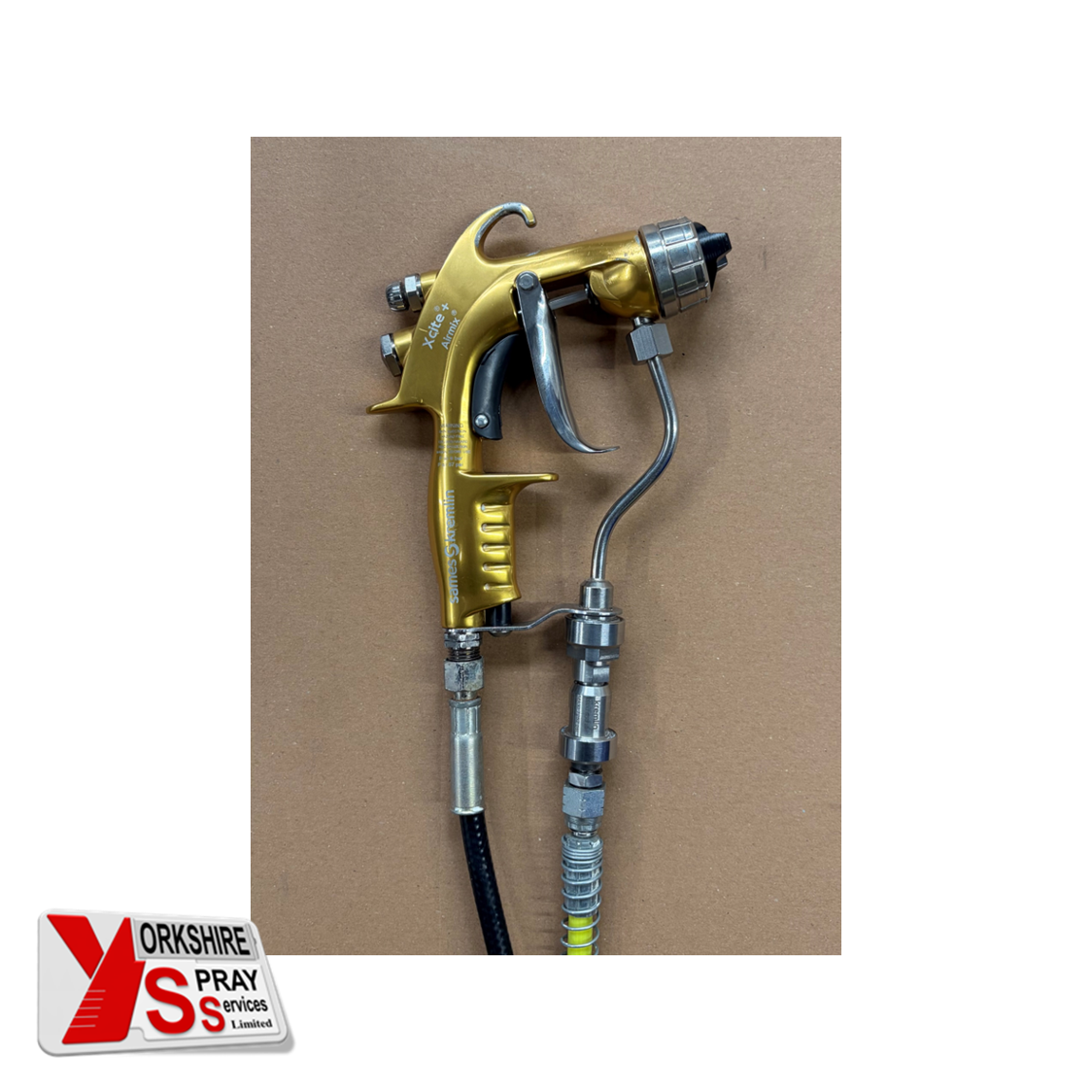

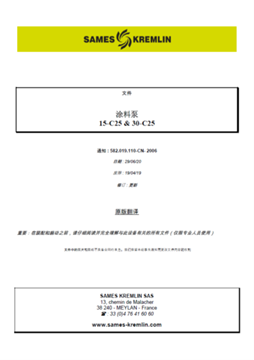

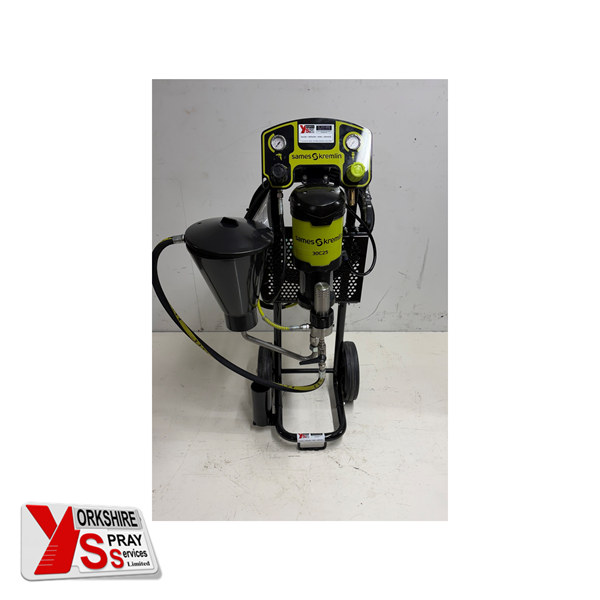

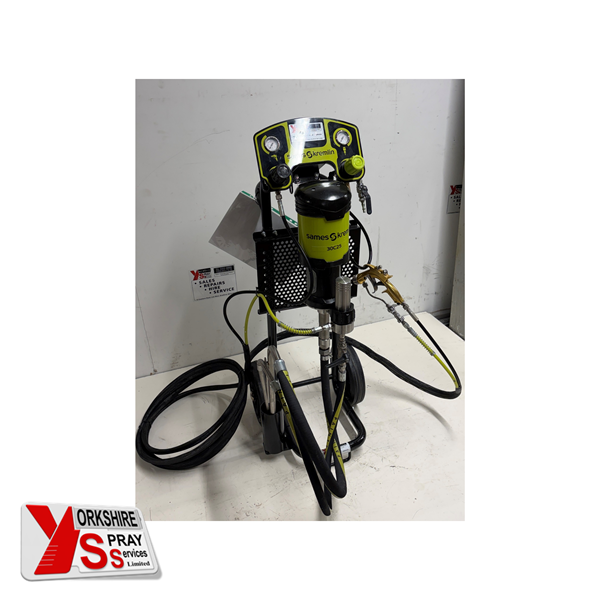

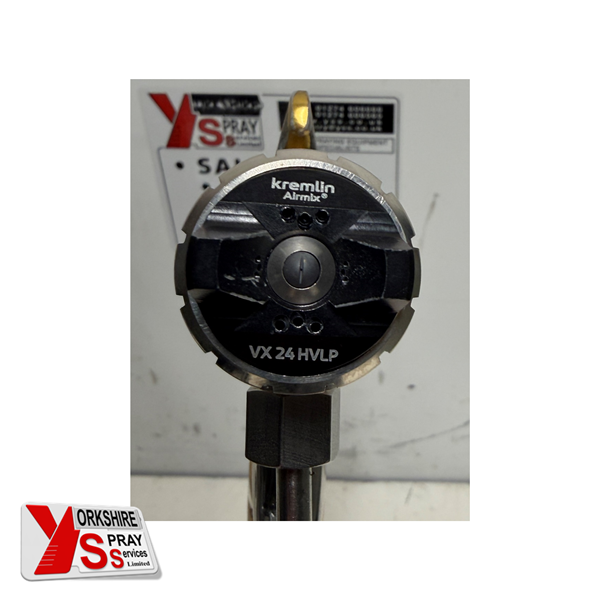

Recon Airmix SprayPack Reconditioned Piston Pump EOS30C-25 Reconditioned Trolley Reconditioned Regulators NEW Suction Hose DN25-SSt assy. OR 5Ltr Hopper Assy. Reconditioned HP-Filter System Part Used Airmix Hose Set 7,5m Reconditioned Airmix Xcite Gun Part Used Air cap VX24 Part Used Nozzle/Tip 06-114 (11/50)		Brochure Download	Manual Download
