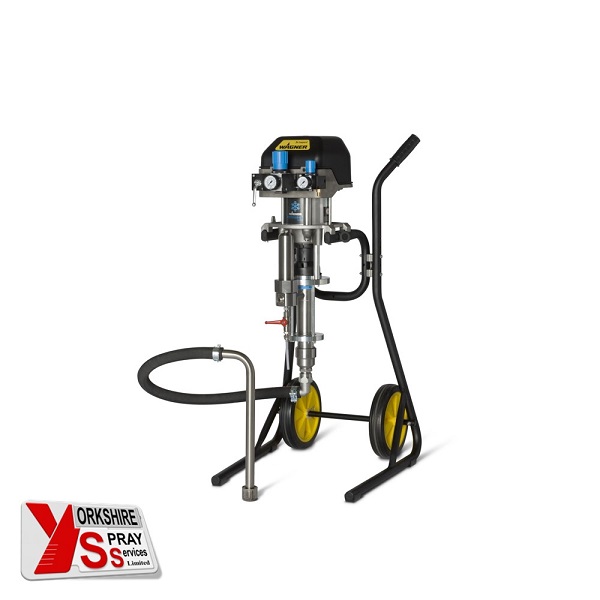

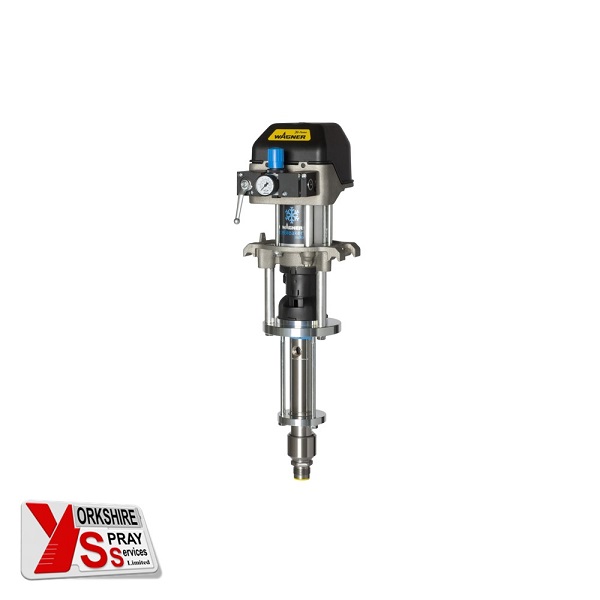

Wagner Leopard 35:70 PE/TG

Product Description

The Wagner Leopard 35:70 PE/TG – High-pressure piston pump, stainless steel for AirCoat & Airless applications. Ideal for industrial coatings in the wood and metal industries. Powerful & Reliable, the extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation. Ideal for Airless and AirCoat coatings with low to medium viscosity materials in cabinet making, wood working, furniture and metal working operations. The Fluid Section is made entirely of high quality stainless steel and is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.

Features & Benefits

1 | Powerful & Reliable – The unique internal design of the motor & its special discharge valves drastically reduce ice formation & prevent accumulation to ensure superior performance & exceptional reliability		5 | Under Full Pressure – The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions & optimal performance
2 | Safe Operation –The pressure regulator is integrated with a safety air valve to ensure when it is closed that no pressure is left in the air motor		6 | Performance & Durability – Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used
3 | Service Friendly – The release agent cup is easily accessible. The quick-release coupling between the piston rod and air motor make it possible to quickly and easily disconnect the fluid section		7 | Acid Catalyst Option – All components that come into contact with the acid catalyst can be supplied in 316ss. This option can be used with the Twin Control & 2K Smart mix systems
4 | Filtration & Recirculation – The fluid section has the option to be fitted with a high pressure fluid filter or release combo for a quick pressure release, fill or flush function.		8 | Easy & long Lasting – Large ball valve with hard metal seats ensures strong suction power & extremely long working life. Easily opened for cleaning without disassembling the fluid section. The suction hose moves freely on a swivel joint

Material Filter

High pressure filters for high flow rates. To be mounted directly at the pump outlet. Equipped with big and easy to clean filter insert Type L. Completely made from stainless steel. The ball valve is used to depressurize the pump in order to prime or flush the pump directly w/o dismantling the HP-hose. The ball valve can also be used to install a full circulation system, when e.g. material must be heated or circulated for other reasons. Advantages Easy to Clean – Large product filter, easy to flush and clean, for optimum service. Up to 270 bar – For product pressure up to 270 bar. Easy to Remove – Stable ball cock in easily accessible position. Complete Solutions, Standardised connection geometry for product return systems: from simple pressure relief to complex material circulation. Suitable for timber, synthetic materials or metal coatings, thin paints or high-viscous corrosion protection.

Technical Data

Pump Ratio 35:1 Operating Pressure 250 bar, 3626 PSI Volumetric Flow per Double Stroke 70 cm³/DS, 4,27 in³/DH Volumetric Flow per 60 DH 4.2 l/min Max. Stroke Rate 60 DS/min Material Inlet M–M 36×2 Material Outlet M–M 24×1,5 Air Inlet Pressure 2,5 – 7,1 bar, 36 – 103 PSI Sound Level at 6 bar Air Pressure 74 dB(A) Material Temperature 5 – 80 °C, 41 – 176 °F Ambient Temperature 5 – 60 °C, 41 – 140 °F Material Ph 3.5 – 9 pH Max. Material Pressure at Pump Inlet 20 bar, 290 PSI Allowable Inclination ±10 ° Weight 26,0 kg, 57.3 lb
