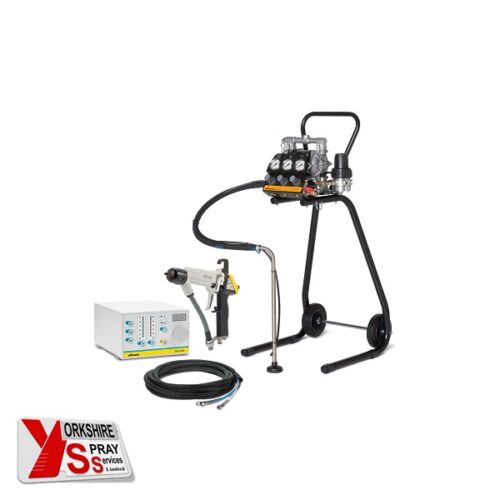

Name: Wagner Zip52 &amp; GM5000EA Finishing
SKU: 2356637/2310477
Price: 7821.00 GBP
Availability: BackOrder

Product Description

The Wagner Zip52 Alu & GM5000EA Finishing Spray Pack is designed for a maximum material pressure of 8bar (116psi), along with the Wagner GM5000EA Electrostatic Manual Gun for Airspray applications, ideal for applying low-conductive solvent-based lacquers. The Wagner VM5000 Controller has been developed in new range of intelligent control units based on advanced technology and long experience. The VM5000, allows all electrostatic parameters to be adapted in real time to provide the best gun performances in any conditions.

The right combination of Airless, Airspray and electrostatic charging, combined with the unique Wagner know-how, results in perfect finishing, high productivity, soft spray pattern, excellent wrap around and very high transfer efficiency. All ready-to-use Wagner Zip 52 Finishing Pumps include the Fine Flow Controller (FFC): precision material pressure regulator, anti-pulsation unit and filter in a single device.

Features & Benefits

Wagner Zip Pumps are perfect for AirSpray applications. Whether using high viscosity material, shear sensitive or thixotropic, heat critical paints or just ordinary coatings, ZIP finishing equipment meets all the expectations of a professional painter.

Versatile – The fluid section is completely hermetic, free of rubbing and sheering, and is thus ideally suited to all types of fluids – especially highly abrasive fluids such as corrosion protection material, material that is sensitive to shearing or rubbing such as UV paint, or material that react to humidity such as isocyanate hardeners.
Frugal & Economical – The high efficiency allows for low air consumption. The internal geometry, free of dead space, significantly helps save solvent when changing paint and cleaning.
Highest Spray Quality – Smooth, even and pulsation-free material flow through the precision Fine Flow Controller (FFC), which is additionally equipped with an integrated material filter.
Easy to Operate – All control elements are easily accessible in a convenient position.
Ready to use Equipment – Various ready-to-use spraypacks in different equipment: Mounted on a frame, trolley, wall mount, or on a drum cover – complete with material pressure regulator, suction pipe, agitator, material hose, and spray gun.

Zip Pump Technology

Typical Applications & Fluids

In the Wagner AirSpray process, the paint is atomised entirely by air. The task of the pump is to feed the gun with a constant flow of materials.

Two coupled diaphragms (2) are moving from the left to the right and back by help of pressurised air (3). The steering valve (4) guides the air to the side where the diaphragm is moved to contract the fluid chamber (1). Material is being transported by contraction and expansion of the fluid chamber volume and the inlet- and outlet valves (5&6).

Yorkshire Spray Services Ltd - Wagner Zip 52 Technology

Wood & Furniture Industry
General Metal Industry
Plastic Finishing
Leather & Textile Application
Glass Coating
Stains, Primers & Fillers
Base & Clearcoats
Solvent & Water-Based Paints
2-K Materials
High Solid Materials
UV-Paints
Metallic Paints
Special Effect Paints
Glues & Adhesives

Fine Flow Controller (FFC)

This device allows adjustment with maximum precision and simplicity, allowing fine tuning of the pumped fluid pressure, at the same time working as a filter and anti-pulsation system.

FFC allows to obtain a regular and no-pulsating flow, ideal for maximum quality finishing and high precision applications. (Precisely adjustable filter flow controller with filter and integrated pulsation damper)

This 3 in 1 device, further to being very compact, reduces the internal dead space where usually residuals and dirt build up. Both cleaning operation and colour changes result easier, quicker and cheaper.

Features & Benefits – GM5000EA

1 | Unique AirCap & Nozzle Design – The new developed AirCaps and Nozzles provide a superior spraying result. Different AirCap lines are available to achieve superior atomisation and fan adjustment.

Flat Spray AF5000 Small – smaller spray pattern and slow air speed
Flat Spray AF5000 Wide – wider spray pattern and slow air speed
Round Spray AR5000 D8 – Full cone with swirl and small spray pattern diameter
Round Spray AR5000 D12 – Full cone with swirl and wide spray pattern diameter

Nozzle sizes from 0.6 to 2mm are available for flat spray to adapt the spray gun to low and high material flow and viscosities. The color coded Nozzles can be changed with no tools.

Yorkshire Spray Services Ltd - Wagner Electrostatic AirSpray - Wagner GM50000EA - Nozzles - Features & Benefits

2 | Solvent Based Application – Suitable for the majority of solvent based paints with a paint resistant above 150kΩ. (50kΩ. in the LowR Gun & 1kΩ.cm to 1MΩ.cm in the EAW Gun) Connections are directly at the gun base making them easy to remove.

3 | Integrated material valve – The integrated material valve reduces down time because the nozzle can be changed without relieving the material pressure and flushing

4 | Needle Stroke Adjustment – Precise and easy needle stroke adjustment is achieved with the indexing function for fast tuning of the paint flow.

Technical Data

DDP Zip52
Pump Ratio	1:1
Operating Pressure	8bar / 116psi
Material Temperature	4 – 90 °C
Max. Air Inlet Pressure	8bar / 116psi
Min. Air Inlet Pressure	1.5bar / 22psi
Air Inlet Connection	BSP(G) 1/4″ F
Volumetric Flow with Free Flow	52 l/min
Volumetric Flow per Double Stroke	108 cm³/DH
Max. Particle Size	2mm
Sound Level at Max. Flow Rate & Feed Pressure of 8bar	85 dB(A)
Max. Suction Lift	4.9m
Pump Body Material	Alu
Weight	8.9kg

GM5000EA
Max. Output Voltage	80kV
Max. Output Current	100 µA
Max. Material Pressure	250 bar (3600psi)
Material Connector	BSP 1/4″
Material Temperature	50°C (140.0°F)
Max. Air Inlet Pressure	8bar
Compressed Air Connector	A – G 1/4″
Operating Temperature	5 – 40°C (41.0 – 104.0°F)
Recommended Paint Resistant	150kΩ
Weight	618g
